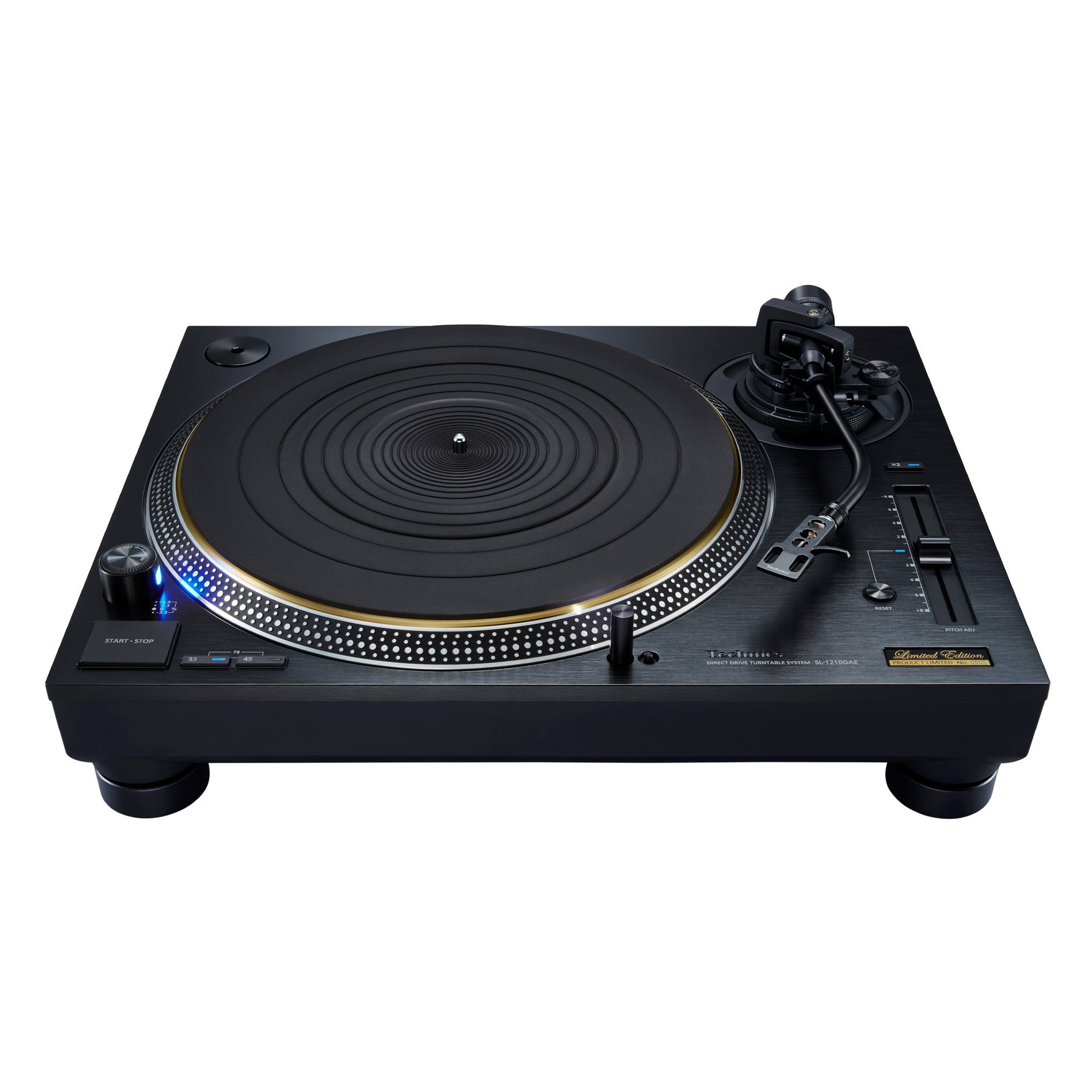

55th Anniversary Limited Edition Direct Drive Turntable System SL-1210GAE
Created by Technics in pursuit of true analog record sound, rather than nostalgia, the SL-1210GAE 55th Anniversary Limited Edition direct drive turntable includes the latest technologies to solve issues involved with direct-drive systems, such as cogging. The SL-1210GAE includes a newly developed coreless direct-drive motor with greatly increased precision by incorporating Blu-ray Disc technology for rotation control. This cutting-edge direct-drive system will surpass previous direct-drive systems. It is not a reproduction but innovation. We are redefining the reference in direct-drive turntables for the modern age.
- Specially numbered, limited edition model with only 1210 units sold worldwide
- Newly developed coreless direct-drive motor with no iron core eliminates cogging
- Advanced motor control technology for high starting torque and high-speed stability.
- Three-layer turntable platter construction with deadening rubber to eliminate unnecessary resonance
- The balance of the turntable is adjusted at the factory using specialized high-precision equipment
- High-sensitivity tonearm with lightweight magnesium for a high damping effect
Thank you!

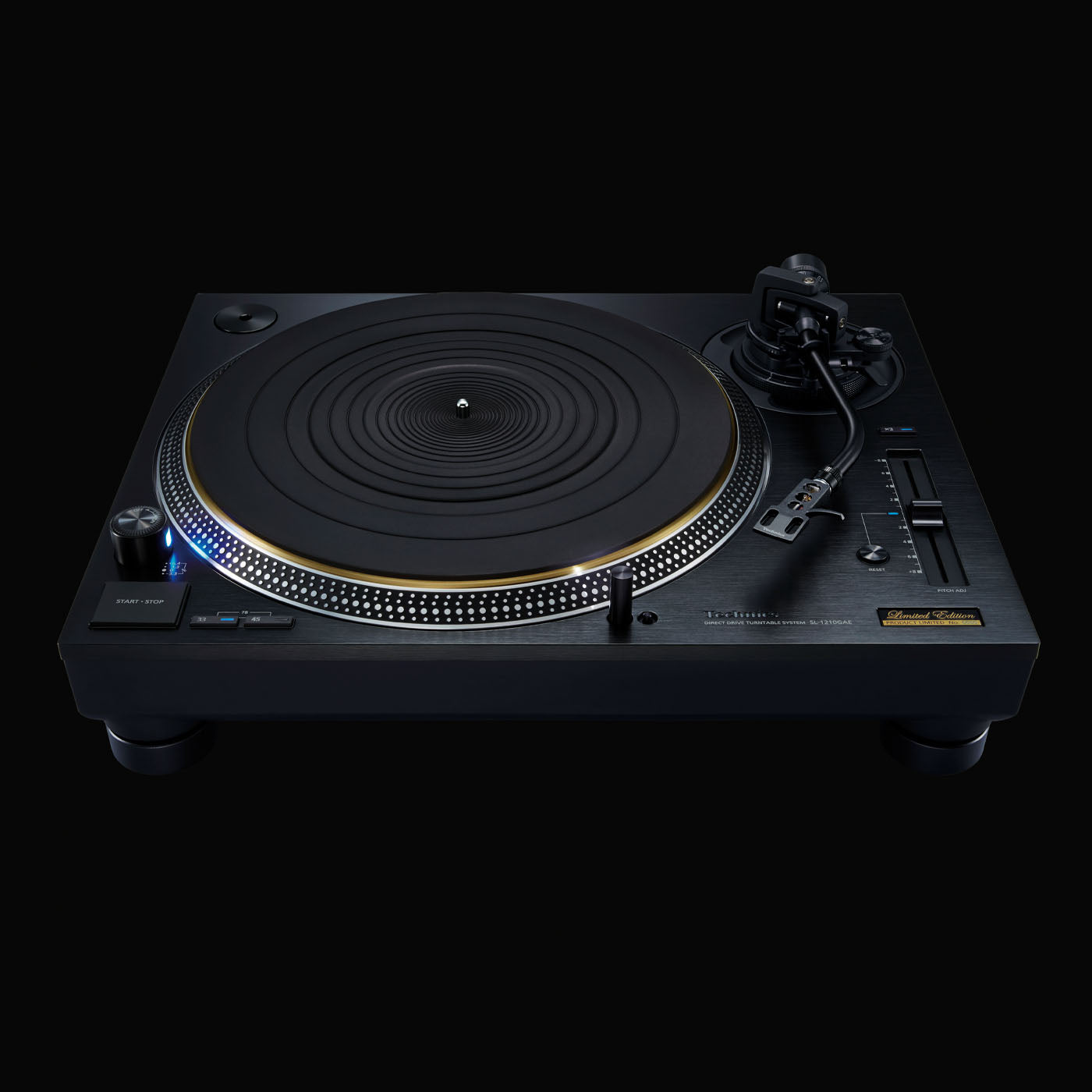

All-Black Color Scheme
The SL-1210GAE’s 10-mm-thick aluminium top panel sports a meticulously anodized black brushed hairline finish. In addition, the operation buttons and tonearm also employ a high quality black finish that results in a uniform, premium appearance.

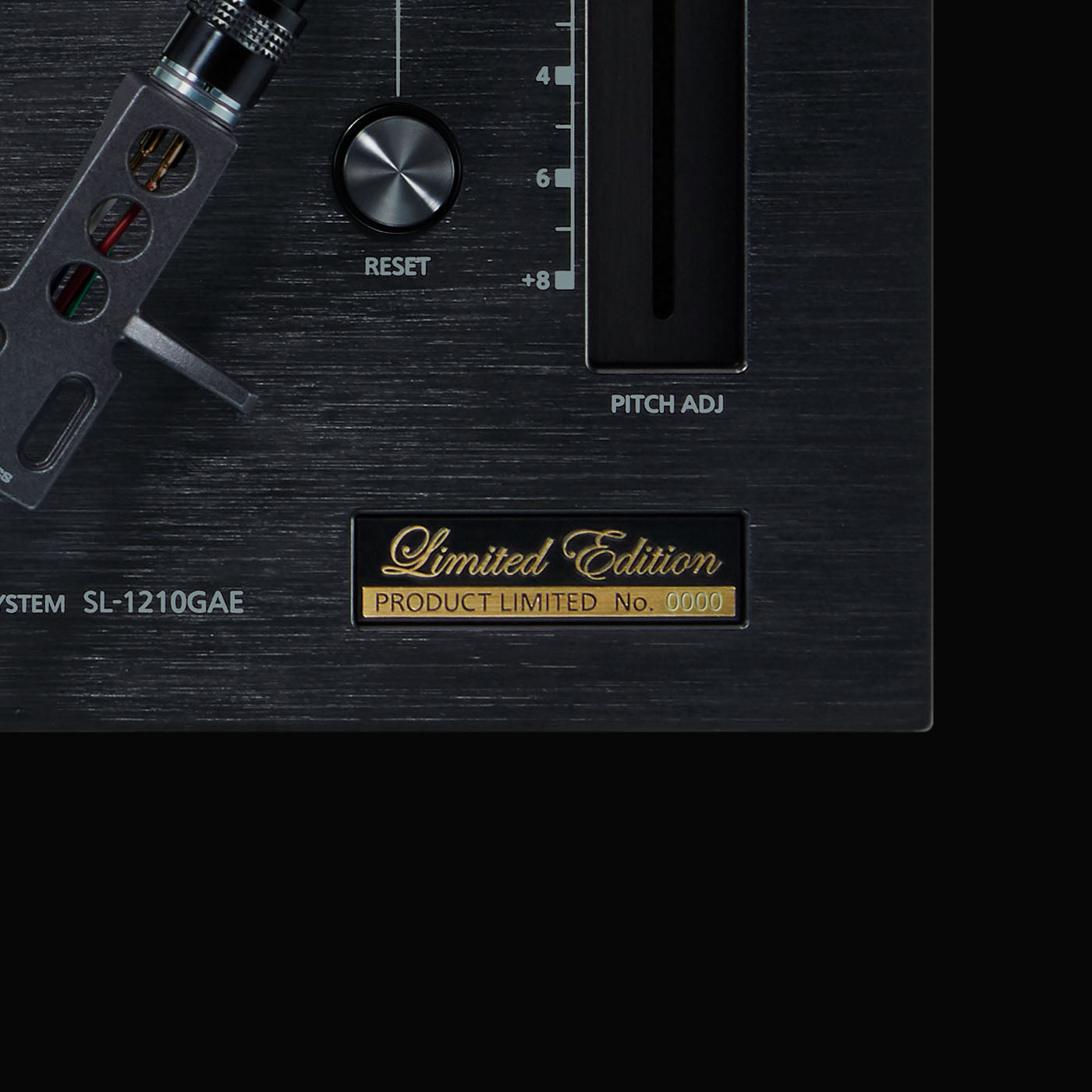

Special badge inscribed with a serial number
The SL-1210GAE is wholly made in Japan by skilled artisans’ hands, with a significant level of hand-made processes to ensure the highest quality possible. The top panel features a special badge, inscribed with the unique serial number to signify that it is a 55th anniversary model.

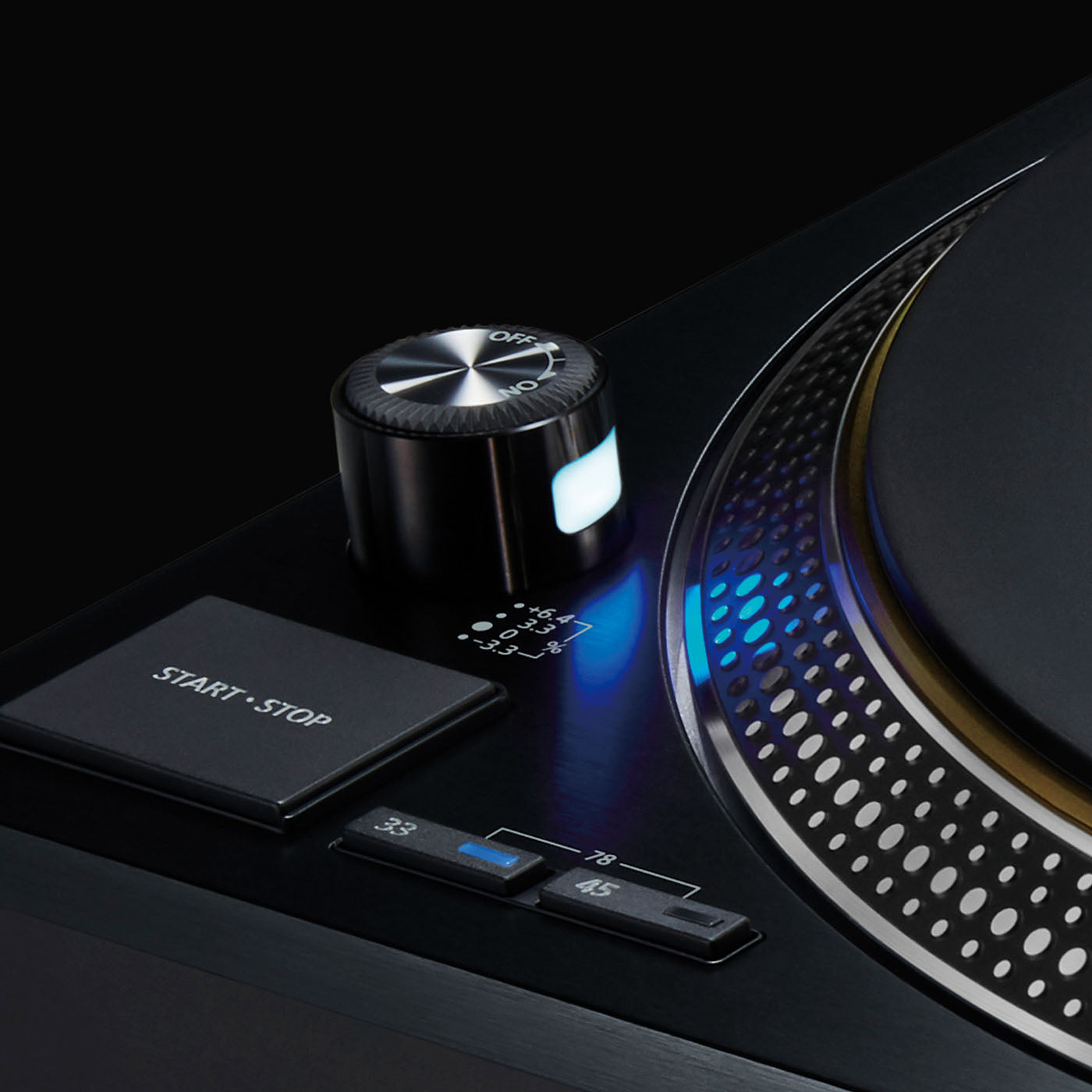

Strobe light ON-OFF switch
Turning off the strobe light allows the listener to concentrate more effectively on the music, especially in dimmed environment.
Coreless Direct Drive Motor
Conventional analogue turntables have problems with degradation in sound quality caused by factors such as minute speed vibration during rotation and rotation irregularity called "cogging." In the SL-1210GAE, the use of a coreless direct-drive motor (with no iron core) eliminates cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque, and also reduces minute vibration during rotation. These factors enable reproduction of the warm, high-level detailed sound available from analogue vinyl records.
Three-layered Turntable Platter
The turntable features a three-layered construction with a rigidly combined brass top-plate, an aluminium die cast core platter and a solid rubber coating covering its entire rear surface to eliminate unwanted resonance, thereby achieving overall superior rigidity and vibration damping. This delivers smooth rotational stability and high inertial mass surpassing the SP-10MK2 (the direct-drive turntable standard used by broadcast stations worldwide), as well as having more than twice the inertial mass of the SL-1200MK5.

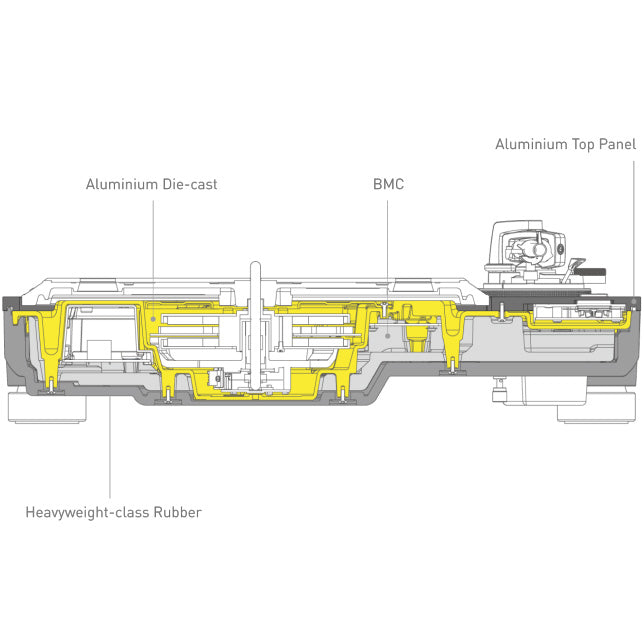

Four-layered Cabinet Construction
A hairline-processed, 10-mm-thick black top panel of immaculate aluminium is added to a three-layered construction of aluminium die-cast, BMC(Bulk Moulding Compound), and heavyweight-class rubber. This four-layered construction combines high rigidity necessary for superb vibration damping with a superior solid build and a luxurious finish and feel.
High-precision Motor Control Technology
The application of motor control technology developed for Blu-ray devices and switching the drive mode depending on the operational status of the motor achieve a high-starting torque and high-speed stability.
High-level Balance Adjustment
When the weight distribution of the turntable is uneven, excess vibration or noise occurs during rotation, which causes degradation in sound quality. To counteract this, the balance of the turntable is adjusted at the factory by using specialized high-precision balance adjustment equipment for each and every item after the turntable is assembled. Turntables that have undergone adjustment are labelled with a sticker reading "BALANCED" to indicate that individual adjustment has been done.

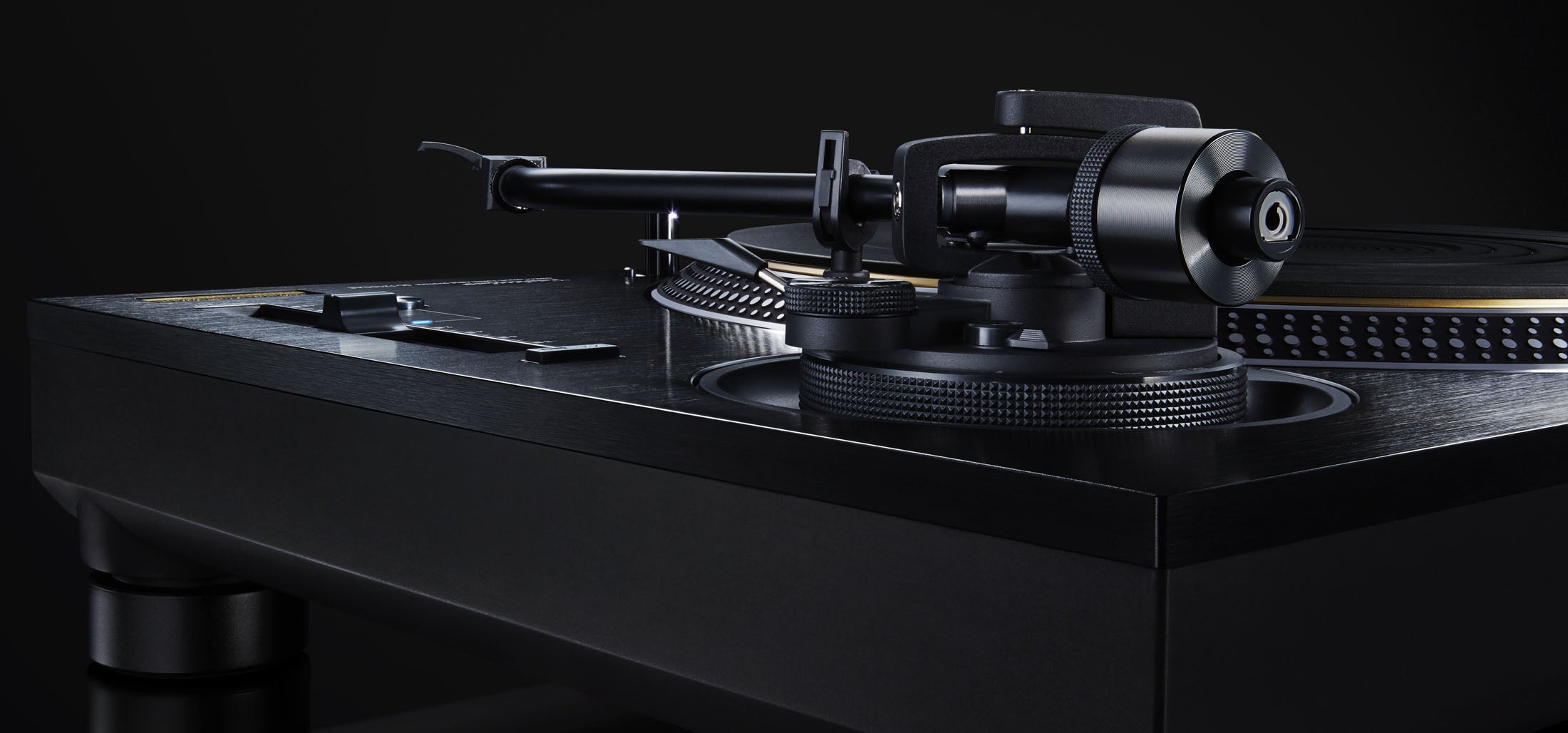

High-Sensitivity Tonearm
The tonearm employs lightweight magnesium which has a high damping effect, with cold drawing improving the characteristics of the material and achieving the high-precision required. In addition, high initial-motion sensitivity is attained by employing the traditional Technics gimbal suspension construction with the horizontal
rotation axis and the vertical rotation axis intersecting at a single central point, as well as high-precision bearings using a cut-processed housing.
High-Quality Terminals
The use of brass-milled and gold-plated phono terminals and ground terminals prevents degradation in sound quality while enabling the easy attaching and detaching of cables. Also the use of metal shielding construction inside the case reduces the effects of external noise.
Insulator
The specially developed zinc insulator features aGEL™, a soft gel-like material with excellent shock absorbing properties which is also used on the highly acclaimed, ‘flagship’ SL-1000R reference turntable. The high-density zinc die-cast housing offers superb vibration damping characteristics and excellent long-term reliability. The new insulator effectively isolates the turntable from external vibrations, ensuring completely undisturbed music reproduction while preserving every fine nuance and detail within the musical signal.
αGEL™ is a trademark of Taica Corporation registered in Japan and/or other countries.
